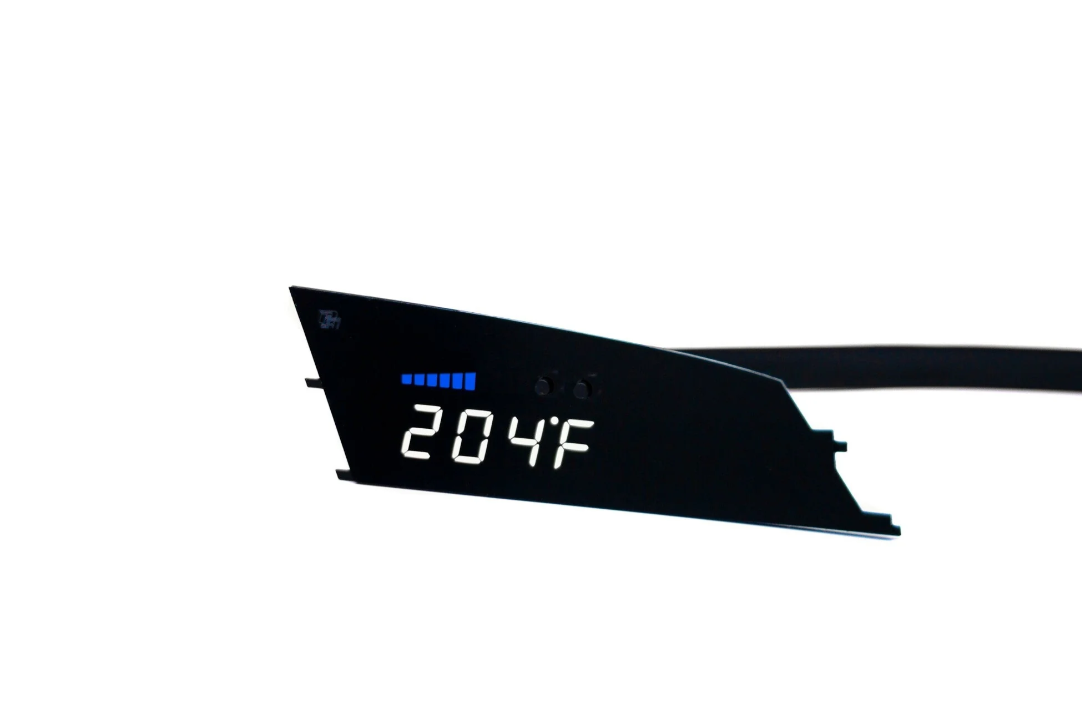

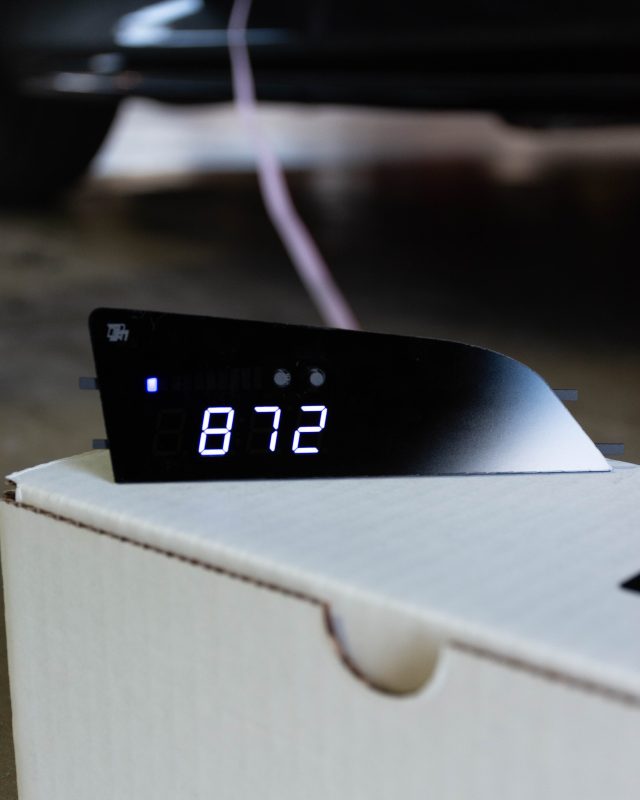

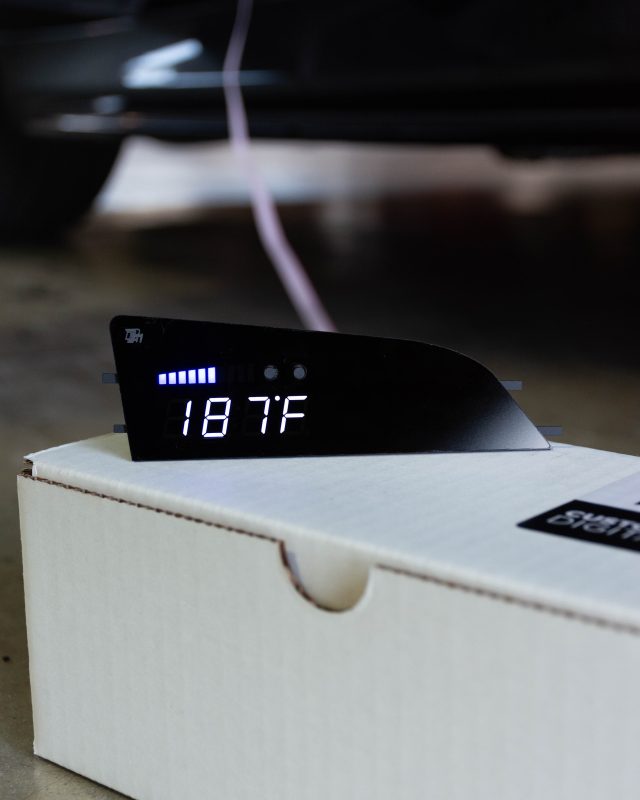

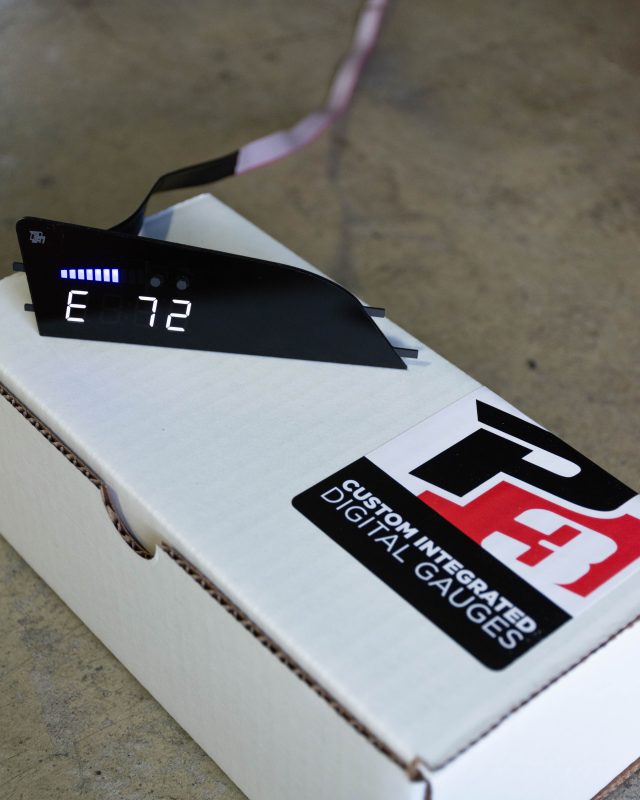

P3 OBD2 – Cadillac ATS-V Gauge (2016-2019)

Description

P3 V3 GAUGE FEATURES:

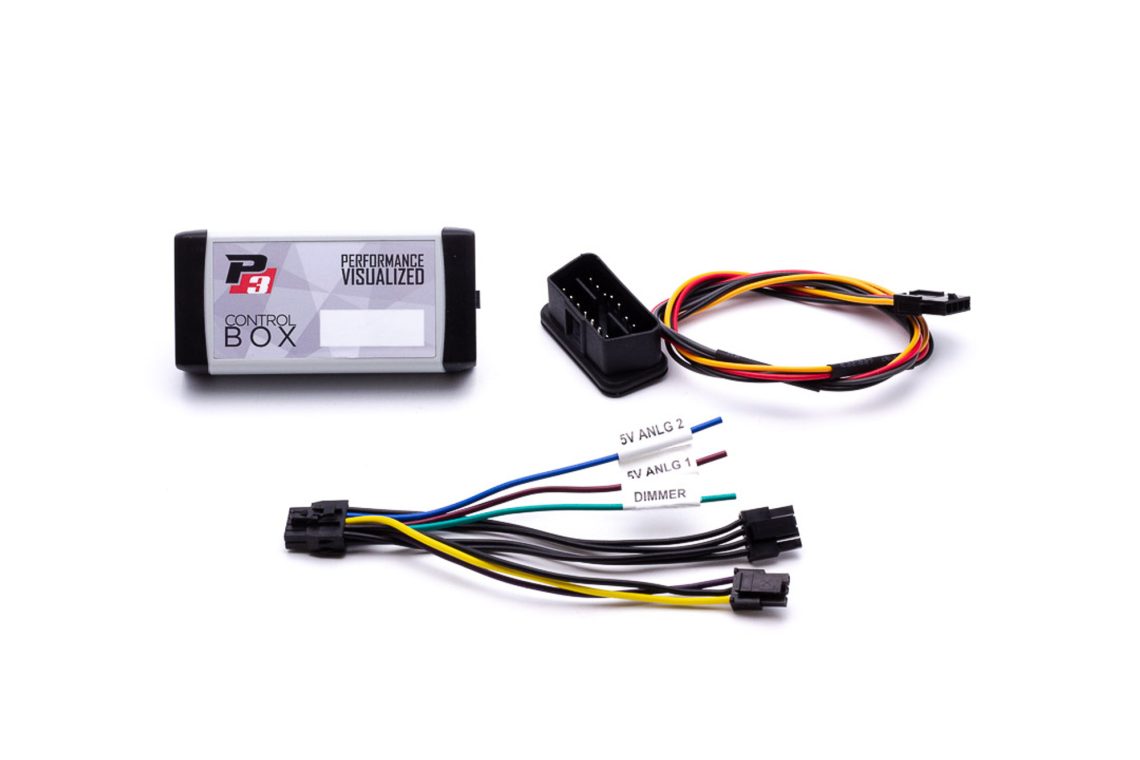

– Plug and Play Install – plugs directly into your OBD2 port

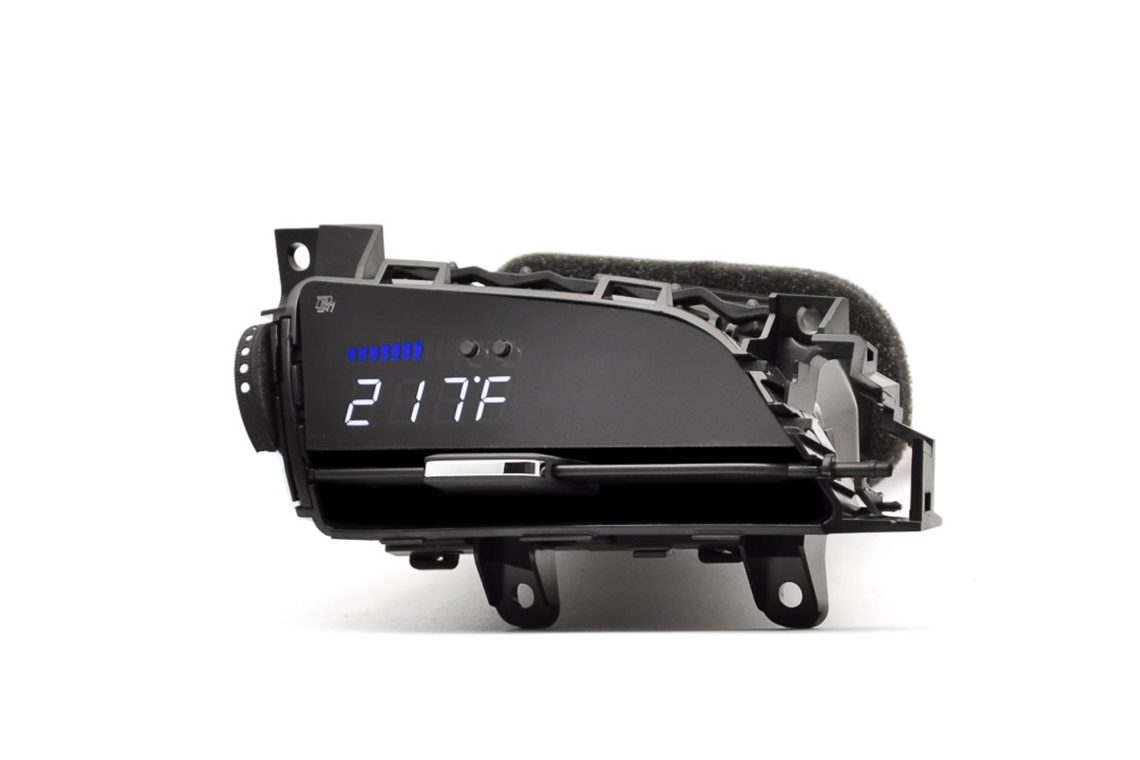

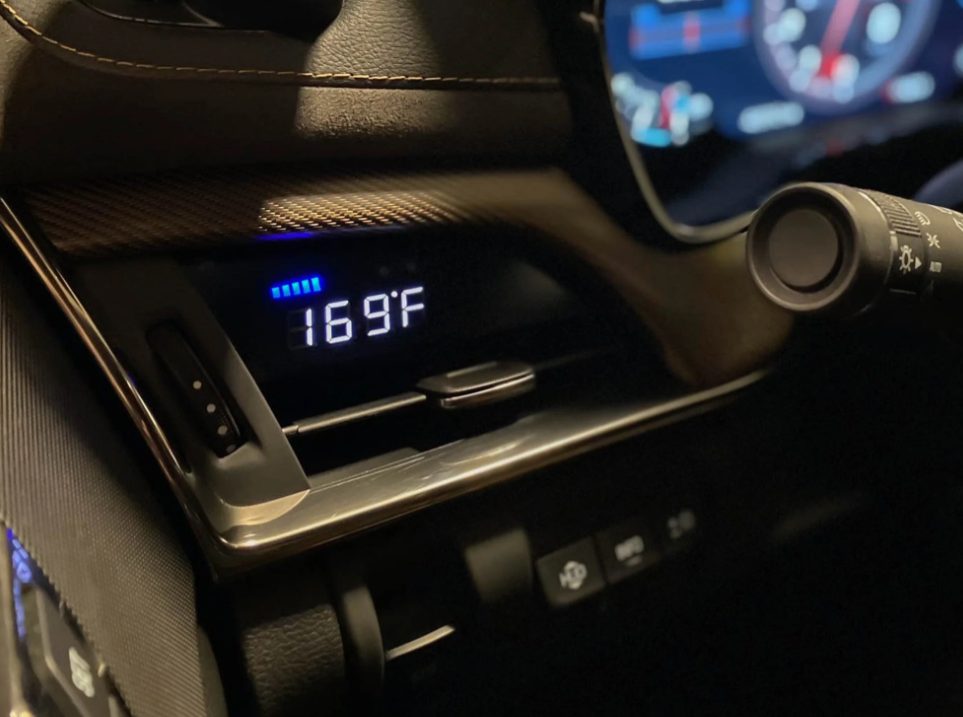

– OEM Integration – installs in your vent for a sleek install while retaining air flow
– Versatility – read boost from multiple OEM sensors through OBD2 port or using optional P3 analog boost sensor
– Code Reading/Clearing – read and clear diagnostic trouble codes (DTCs) on the fly

P3 V3 GAUGE READOUTS (ALL READOUTS CAN BE INDIVIDUALLY CONFIGURED TO READ IN EITHER IMPERIAL OR METRIC UNITS)

– Boost (through OBD2 port using OEM sensors or with P3 analog boost sensor)
– Ethanol content (on FlexFuel tuned vehicles)
– Coolant temperature
– Air/Fuel ratio (can be read in AFR or Lambda)
– Vehicle speed (can be calibrated in 1% increments from -9% to +20%)
– Intake air temperature
– Throttle angle
– Ignition timing
– Engine RPM
– Exhaust gas temperature
– Battery voltage
– Programmable shift light
– Analog input 1 (brown wire) can allow gauge to read any 0-5 volt linear output sensor
– Analog input 2 (blue wire) can allow gauge to read any 0-5 volt linear output sensor
– Acceleration timers (0-60mph/0-100mph/60-130mph)
– Braking timers (60-0mph/100-0mph)



Installation Guide HERE
