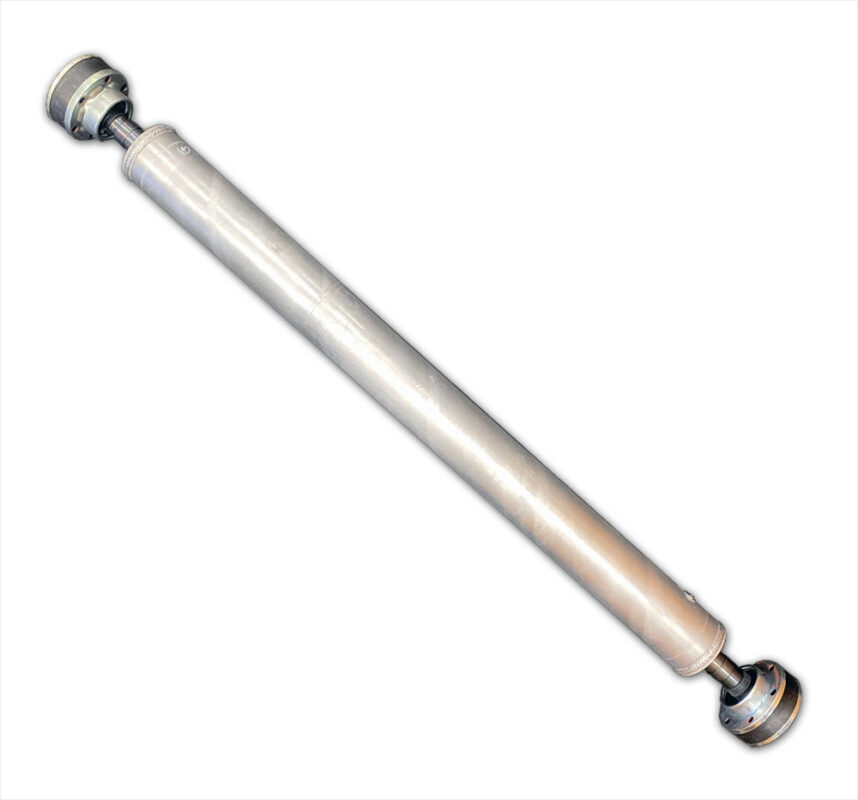

Aluminum ATS-V driveshaft

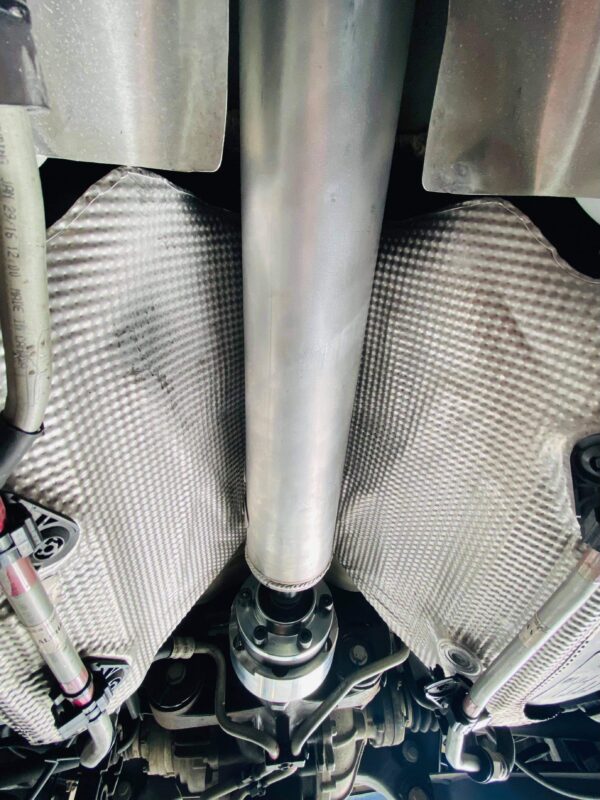

Installed aluminum driveshaft

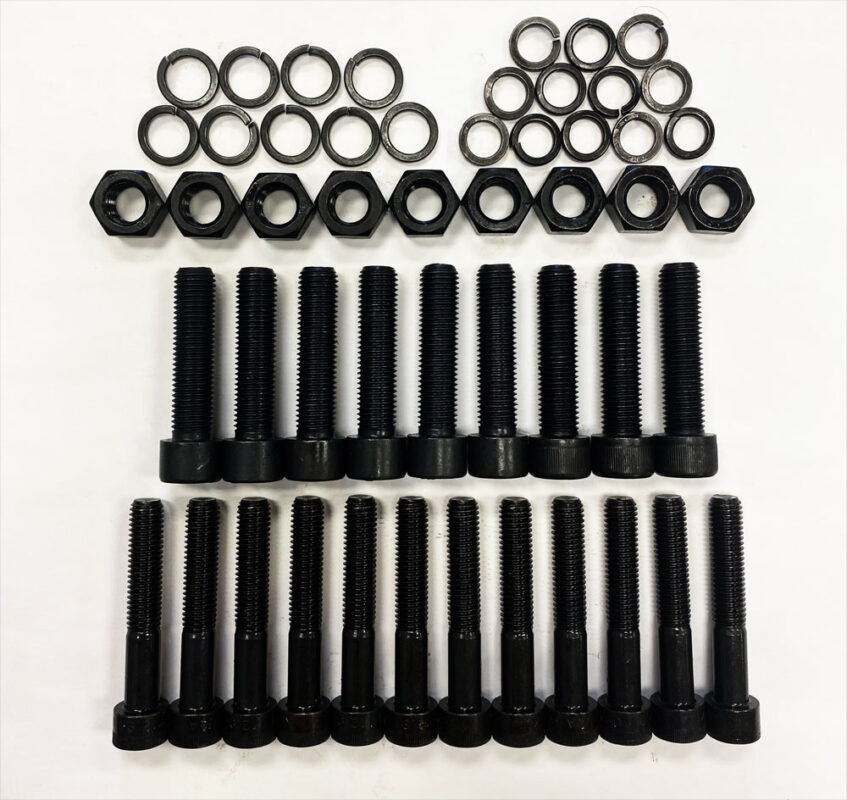

ATS-V aluminum driveshaft bolt kit
ATS-V aluminum driveshaft couplings
BMR Driveshaft Loop

Driveshaft Shop ATS-V Aluminum Driveshaft

$1,097.64

IN STOCK! Your order will ship today if it’s before 3:00 Ohio time on a business day, or next business day otherwise.

$

Category: Drivetrain
  • Description
  • Additional information
  • Reviews (0)

Description

Our factory driveshafts are two-piece units with a carrier bearing assembly in the center. They have rubber giubo couplers on both ends, which are used to transmit the torque. These assemblies weigh 31.0 pounds (A8). We have worked with Driveshaft Shop and are proud to bring aluminum driveshafts to the ATS-V market. Complete with aluminum couplers and all mounting hardware, these weigh in at 29.0 pounds (A8).

Even though this is not a huge weight difference, the aluminum driveshaft will be a significant upgrade as it will be lighter and have more torsional strength than the factory steel driveshaft. We will also be eliminating the hanger bearing and the rear rubber giubo couplers, which will increase responsiveness, acceleration and provide a more direct transfer of power to the wheels.

Tapout drive shaft CVThere are some driveshafts on the market using a male/female slider for the extension/compression needed in this configuration and u-joints, whereas we use a dual CV design with our Driveshaft Shop’s own CV’s, CV mounting components and adapters. There are several reasons for why our manufacturer stopped using the male/female sliders more than ten years ago in all of the one-piece driveshafts they manufacture. The main one is that no matter how tight the tolerances are on these parts they will develop play at high RPM. When Driveshaft Shop started balancing driveshafts in their high-speed machine they realized this and developed their own CV stub designs to use these instead.

Tapout drive shaft CVThe aluminum driveshafts have much more torsional strength than steel, (about 15° under load versus about 5° for steel). The benefit is much more dramatic in higher horsepower applications. Doing the math, the 3.5” aluminum should be good to a 150 mph top speed.

Driveshaft Shop doesn’t recommend a chromoly shaft because they would be very heavy and have a tendency of transferring harmonics since the material is so much more rigid. This is why the stock shaft requires the rubber giubos and hanger bearing to dampen it.

As for vibration, when you eliminate the ability to dissipate the harmonics that occur in a vehicle it will find the least path of resistance. With a one-piece driveshaft, which is a hollow tube, if there are issues with harmonics, the harmonics will amplify through the tube. This is typically seen with solid or poly mounts being present in the drivetrain as they don’t allow for harmonics to dissipate and end up resonating back into the tube.

Includes the required adapter plates and hardware.

Installation Tips:

Made in the USAWe recommend using blue Loctite on the bolts. The 6 x 10mm bolts that thread into the plates should be torqued to 57 ft-lbs, and the 12mm bolts that go through the adapters should be 70 ft-lbs. As for install, mount the adapter plates first to the transmission (CAPL-9 plate) and differential (CAPL-10 plate). Then it is likely easiest to mount to the transmission side first, as this side plunges, compress it toward the transmission to get the rear CV into the adapter. Tighten the six bolts on each side (cross/star pattern) to the recommended torque.

These driveshafts are covered by a one year warranty against manufacturing defects.

Installation Instructions

Additional information

Weight 35 lbs
Dimensions 59 × 7 × 7 in
