MPVI3 and the VCM Suite from HP Tuners, is the complete package.
The VCM Editor and VCM Scanner combine to make VCM Suite the most feature rich, powerful and comprehensive VCM/ECM reprogramming and diagnostics package available on the market today. In addition, our attractive make/model/year based licensing structure makes VCM Suite a clear leader in value for money.
The VCM Editor utility is a comprehensive VCM/ECM programmer and parameter editor.
VCM Editors Flash utility allows the user to read the VCM/ECM flash memory and save it to a binary file. The Flash utility allows a valid calibration to be written to the VCM/ECM and also incorporates an automatic VCM/ECM recovery capabilities for ultimate protection against any reflashing problems that may be encountered.
The VCM Editor also allows modification of the saved binary image. The VCM Editor allows all parameters such as Spark, Fuel, RPM Limits, FAN Temps, Transmission Shift points and pressures, Speedometer settings and many, many more. The editor provides an easy to use graphical interface and many powerful table manipulation capabilities such as copying, scaling and shifting to name a few.
The VCM Scanner utility is a fully featured OBDII scanning and diagnostic tool.
It allows viewing, charting and logging of diagnostic data in real time via the vehicle OBDII diagnostic data port. It also allows viewing of vehicle Diagnostic Trouble Codes (DTC’s) and other vehicle information. Built in VCM controls also supported. Command fans, closed loop, gear select, timing, air fuel ratio and more real time! No editor package can be considered complete without comprehensive scan tool capabilities.
VCM Suite is the ultimate tuning tool designed for your serious tuner and tuner shop.

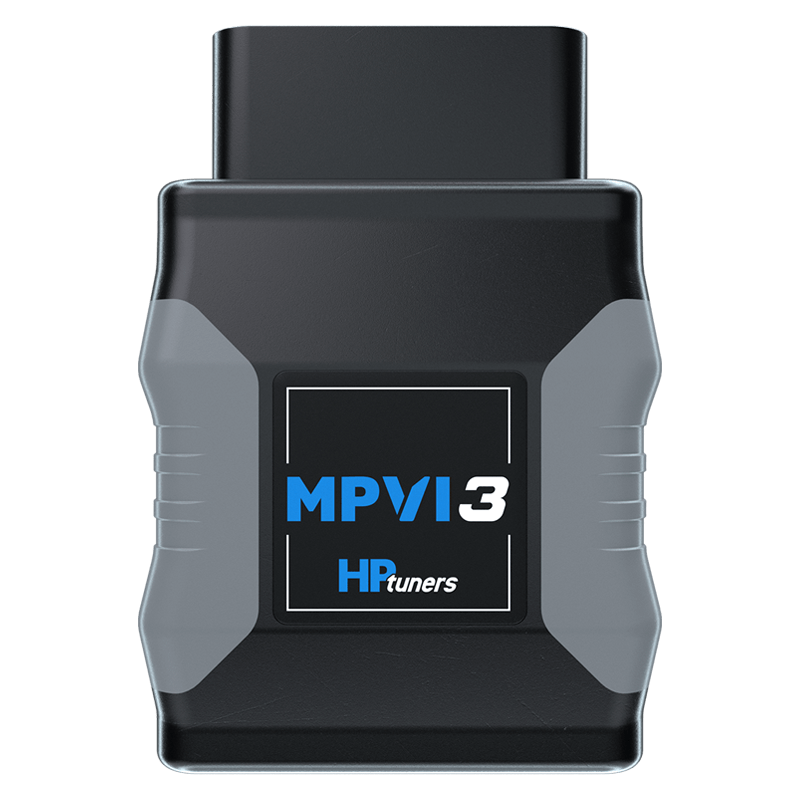

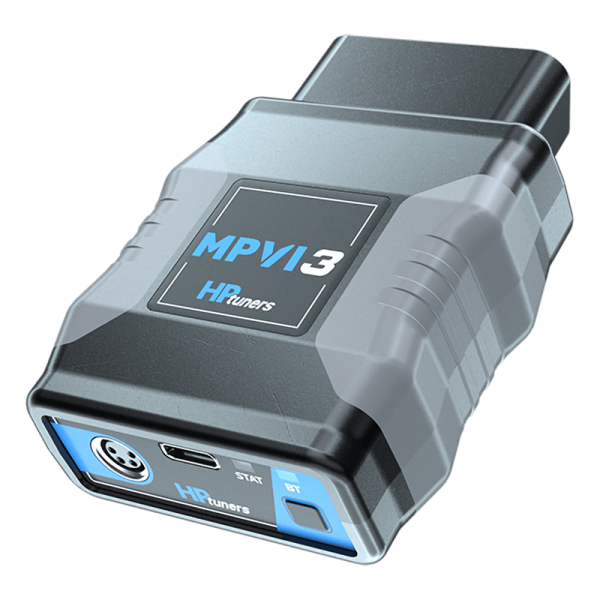

MPVI3 is equipped with enhanced features like Bluetooth®, our Proprietary Expansion Port, and Mobile Device Support, the powerful MPVI2 makes it faster and easier to read, edit, and write your vehicle’s software.
This package includes the MPVI3 hardware and both the VCM Editor and the VCM Scanner software.
HP Tuners VCM Suite has been designed to work with Microsoft Windows® 7 or newer. Windows® 10 is the recommended operating system.
Minimum system requirements:
- 2 GHz CPU
- 4 GB RAM
- Microsoft Windows® 7 or newer
- Microsoft .NET Framework 4.6.1 or higher
- USB Port
NOTE: Our units include the 0 credit option as standard. Please select one of the options you see at the top of the page, or see our credit chart here to purchase the additional credits you may need
WARNING: This is a RACE ONLY product manufactured and sold for installation on vehicles to be used solely for competition purposes. Once this part is installed, the vehicle may never be used, or registered or licensed for use, on a public road or highway. If you install this part on your vehicle and use the vehicle on a public road or highway, you will violate the Clean Air Act 203(a)(3), 42 U.S.C, 7522(a)(3) and may be subject to personal civil or criminal liability, including fines of up to $4,819 per day. Not for sale or use in California.
