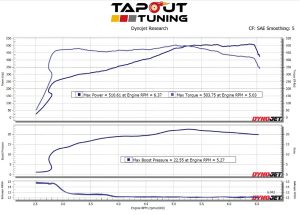

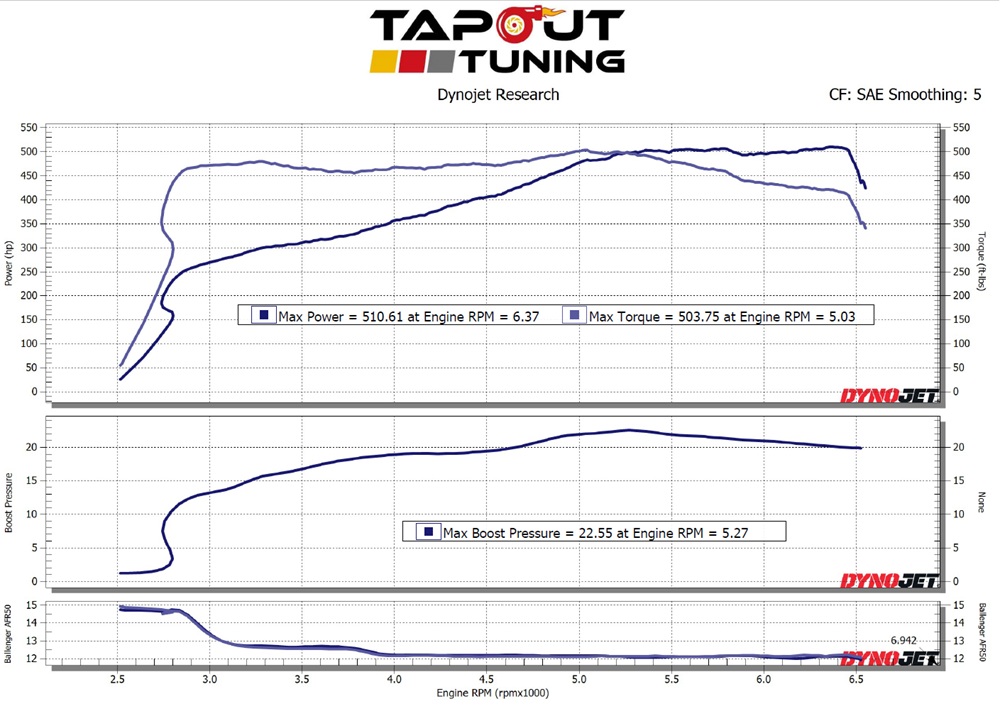

Steven's CT4-V Blackwing M6 Blue Belt Package Dyno Chart

490 whp to 530 whp
CT4-V Blackwing Blue Belt Package

This performance package will normally produce gains of 100 to 135 whp from stock, giving you 490 to 530 peak whp on a DynoJet dyno, using SAE correction and smoothing = 5.  The 490 to 530 whp range for Blue Belt is due to fuel octane (91, 92 or 93 octane gasoline, or E30 ethanol fuel blend) and downpipes preference (resonated or EPA catted).



Want to work your way up the CT4-V Blackwing Ranking Charts? Follow along HERE!



Select one of the two tuning options below:



Scott's 747 whp CT4-V Blackwing Brown Belt

Tuning Option A - Remote Tune for E99 Global B Vehicles

Active Military, Veterans, First Responders and Jiu-Jitsu practitioners can also receive a discount, click HERE

JB4 Tuner Kit

Tuning Option B - JB4 Tuner

Tapout CT4-V Blackwing Downpipes*

$1,133.88

IN STOCK! Your order will ship today if it’s before 3:00 Ohio time on a business day, or next business day otherwise.

ATS-V Throttle Body

Gigs Performance Ported Throttle Body*

$360.13

IN STOCK! Your order will ship today if it’s before 3:00 Ohio time on a business day, or next business day otherwise.

Velossa Tech Ram air intake

Optional - Velossa Tech Dual BIG MOUTH Ram Air Intake Snorkel Kit

Installed

Green High Performance Air Filters - CT4-V Blackwing, CT5, CT5-V (Pair) (7490)

$154.95

IN STOCK! Your order will ship today if it’s before 3:00 Ohio time on a business day, or next business day otherwise.

Brisk_Silver_Racing_plug

Brisk Silver Racing Spark Plugs (6 pack) with Anti Seize and Dielectric Grease *

$69.67
Blackwing Intercooler Fill/Bleed Kit

Tapout Blackwing Intercooler Fill/Bleed Kit

$55.23

IN STOCK! Your order will ship today if it’s before 3:00 Ohio time on a business day, or next business day otherwise.

All color options

Blackwing Sticker

$19.00

IN STOCK! Your order will ship today if it’s before 3:00 Ohio time on a business day, or next business day otherwise.

Green Air Filter Cleaner and Oil Package

Optional - Green Air Filter Cleaner and Oil Package

Category:

Description

We are the main innovators in this platform. Our team bent over backwards to acquire one of the very first Blackwings in North America, serial number 0026.  We started working the day the car arrived, and have been developing a proper tuning solution for these cars over the last two years.  Our flagship CT4-V Blackwing already has 12,000 miles, 320 dyno pulls and makes 716 whp. It has been the drag strip eight times, racing in events from Florida to Texas to Ohio.

Our team partnered and worked with HP Tuners engineers to validate the flashing procedure, beta test this new product and define all the required calibration tables.  Full tuning support allows proper ECM calibration and tuning for aftermarket intake, throttle body, downpipes and more.  Now you can have increased boost and higher rev limiters with no more Check Engine light!

Please note that you must ship your original ECM to HP Tuners for unlocking service in order to start the tuning process.  This means you will need to plan ahead to be without your car for a short period of time.  Although it’s technically possible to learn a new ECM to your car, that process would permanently immobilize your original ECM, and there would be no way to restore it’s functionality.  For this reason, we strongly recommend only shipping your original ECM to HP Tuners for unlocking service.

If your car has the A10 Automatic transmission, you will need to have your ECM unlocked and tuned.  You also have the option to get your TCM unlocked and tuned, but this is not required.

Please note that you must ship your original ECM to HP Tuners for unlocking service in order to start the tuning process.  This means you will need to plan ahead to be without your car for a short period of time.

When you purchase our tune, we typically cover any and edits you may want or need for the first 30 days. After that, our annual or monthly tuning subscriptions allow you to continue with data scan review and tuning edits. This would cover things like new periodic checkups, new mods, different octane fuels, race track specific tunes, etc.  The Prepaid One Year Subscription provides access to tuning services (at a 50% discount compared to ordering a Basic Monthly Subscription)!

Gigs ported throttle body increases airflow potential at WOT.

Brisk spark plugs are colder than stock, with smaller gaps and come with anti-seize and dielectric grease for proper installation.

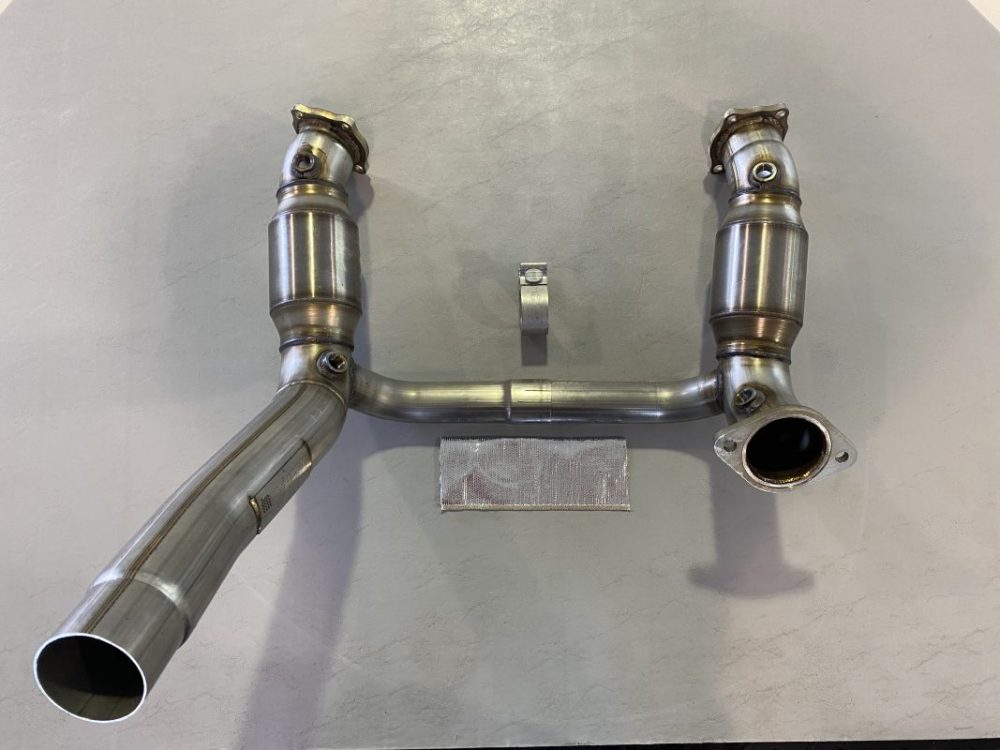

Tapout downpipes are available in resonated or EPA catted varieties. OEM hardware kit includes all gaskets and hardware required for downpipes installation.

Take a look at everything that goes along with the Blue Belt Performance Package below!

Jonathan's Testimonial

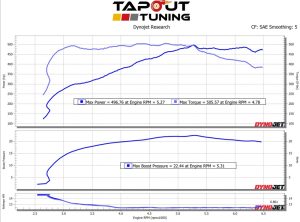

Results

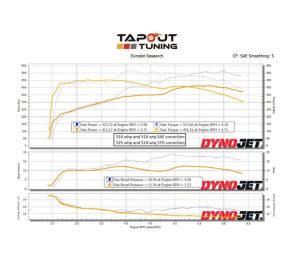

Blue Belt CT4-V Blackwing
Steve's CT4-V Blackwing Dyno Chart with TTM

Matt's CT4-V Blackwing Blue Belt Dyno Chart
Brian's Blue Belt Dyno Chart
Matt's CT4-V Blackwing Blue Belt Dyno Chart

Dave's CT4-V Blackwing Blue Belt Dyno Chart

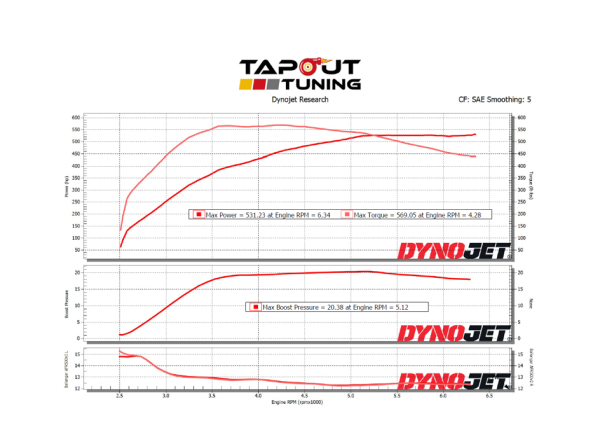

Steven's CT4-V Blackwing M6 Blue Belt Package Dyno Chart

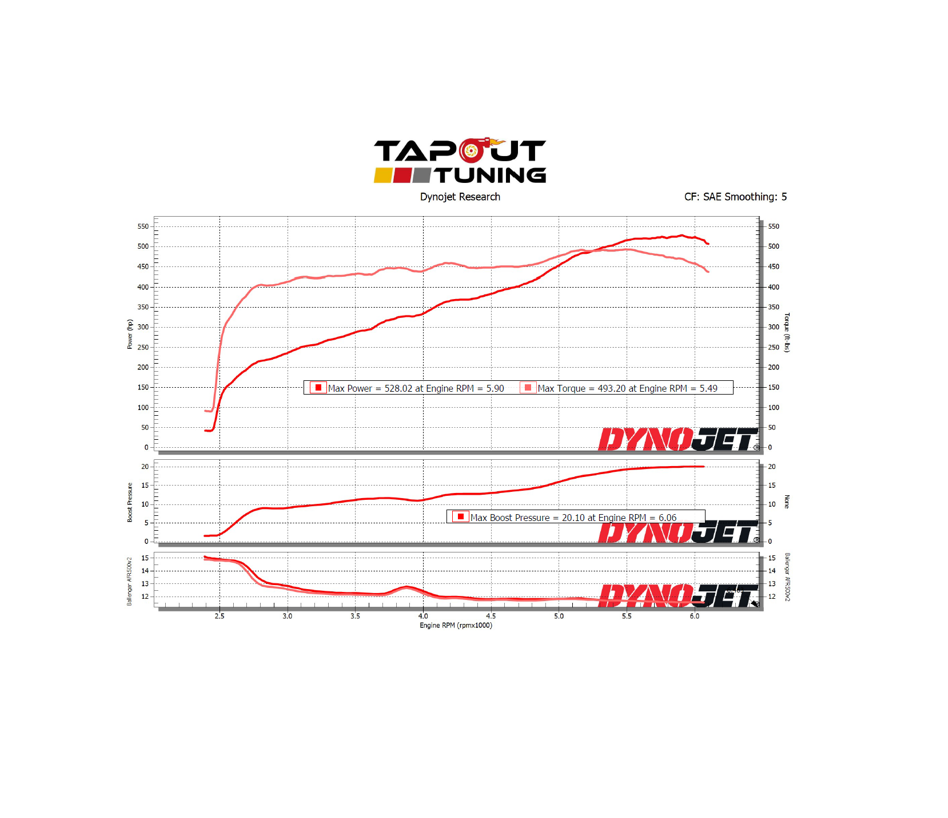

Ken's Blue Belt Dyno Chart

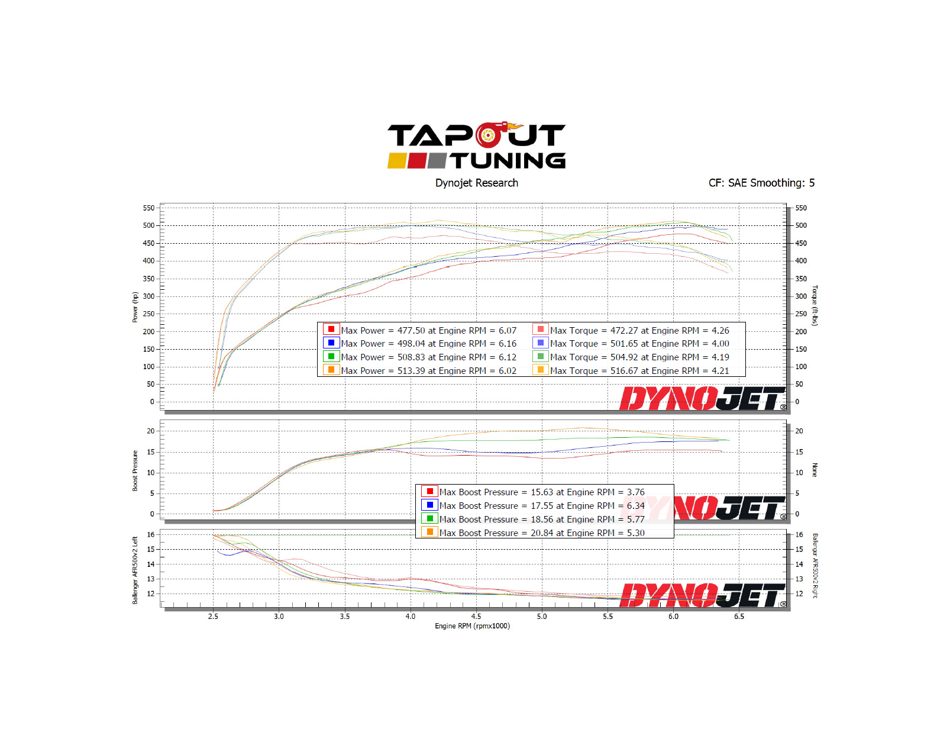

Nathan's M6 CT4-V Blackwing Dyno Chart

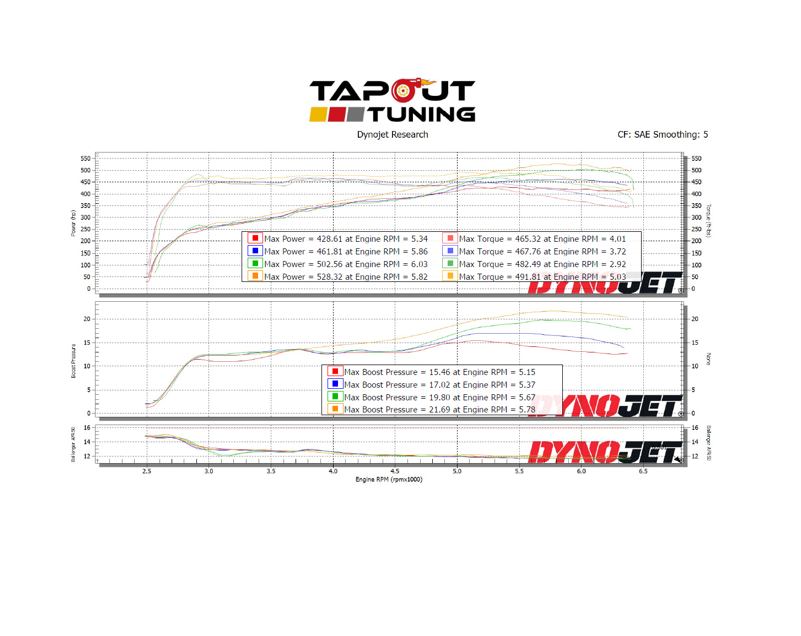

Ryan's Tapout Tuning Module Dyno Chart
Kaylee and Jonathan's stock vs Blue Belt running 100 Octane Dyno Chart

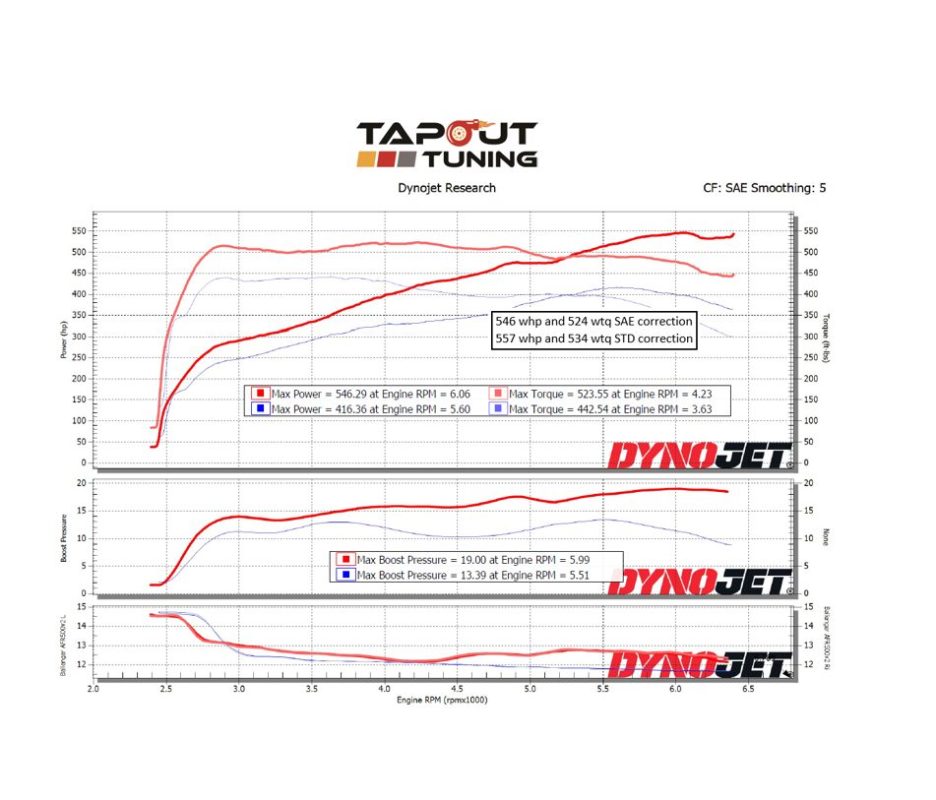

Charley's CT4-V Blackwing E85 Blue Belt
Don's CT4-V Blackwing Blue Belt Dyno Chart
Tim's CT4-V Blackwing Blue Belt Dyno Chart

2024 CT4-V Blackwing 514 WHP Twin Turbocharged



















CT4-V Blackwing: JB4 Tuner

Yes, all driving modes will work the same as they do now. Below 3,000 rpm, the car will feel completely stock in all modes. Above 3,000 rpm, you’ll have more boost and power than before.
The JB4 does not change any factory ECM settings. So you can easily remove the JB4, leaving no trace behind.
No.
No, we still don’t have ECM access, so there is no way to disable DTCs or eliminate Check Engine Light with aftermarket downpipes yet.
There is no way a dealership would be able to detect the JB4 had been previously installed.
RR12YS or RR12S will work fine. RR12YS may last a little longer. RR12S will perform a little better.
Yes, we pre-gap them to .027”. However, the gaps should be double checked prior to installation.
We will include separate calibration maps for 91, 92 and 93 octane. You can switch between them in very easily via the JB4 cell phone app.
We’re still working on finalizing all the details for our Purple and Brown Belt Performance Packages, which will run E85 fuel.
You can deselect any items you already purchased when you place your order.
You can install it yourself, or you could bring the car to our shop here in Ohio if you prefer.
https://www.tapouttuning.com/frequently-asked-technical-questions-for-ct-4-blackwing/We have not tested the JB4 tuner in extreme temperatures. However, we have tuned the same LF4 engines in hundreds of ATS-Vs all over the world. Many are in Dubai, and that’s one of the hottest regions in the world. Plus, the CT4-V Blackwing has a significantly improved cooling system. You can learn more about that HERE.
They are completely distinct products from different manufacturers, with different electronics, different software, different sensor taps, different user interface and different custom tuning ability. The only thing they have in common is that they both allow the cars to be tuned outside of the ECM.
We have been working on our in house dynamometer, and have completed 225 full throttle Blackwing pulls to date. We have spent considerable time and effort testing and validating the JB4 product for the CT4-V Blackwings, and are currently developing and refining their calibration maps for the perfect combination of increased power, while still retaining safety and reliability. Other tuners who haven’t done the proper testing may elect to turn the knobs up higher than we do, but they don’t really care about the longevity of your engine.
If you want to create your own calibration, you can use Map 6 and edit via your cell phone app.
Don’t worry. We can take care of your engine replacement on site 😉
We’re working on it right now, but cannot give a precise E.T.A. at this time.
When you’re not in the gas, the tunes will perform identical to stock. So the car will still be totally fine on long road trips.
Bolt-ons do not typically increase horsepower for untuned CT4-V Blackwings, since the ECMs are torque based. If you install something that helps the engine to flow more air, the ECM just commands a little less boost, and power output remains the same. This is why all our CT4-V Blackwing Performance Packages include both parts and tuning.

Additional information

Weight 14 lbs
Dimensions 20 × 20 × 12 in
